GRP HOT PRESSED SECTIONAL (PANEL) WATER TANKS

URC is a leading manufacturer of GRP Sectional Hot Press Panel Tanks

We pride ourselves on providing the best GRP Panel Design and Production. Produced by ensuring a consistent emphasis on health, safety and consumer satisfaction, by using state of the art technology in GRP Panel Design and Production. Panels and all related parts conform to the water quality standards and food sanitation acts and are manufactured to the requirements of the quality standards.

Safe, Reliable & High quality GRP water storage tanks.

HYGIENIC FOR STORAGE OF DRINKING WATER
ULTRA-VIOLET PROTECTION AGAINST ALGAE GROWTH
HIGH FLEXURAL AND TENSILE STRENGTH
ENGINEERED FOR RELIABLE PERFORMANCE
HIGH RIGIDITY
FLAME RETARDANCY
HIGH CORROSION RESISTANCE
LONG LIFE
MAINTENANCE FREE
SIMPLE ASSEMBLY - ALL SIZES
HIGH TEMPERATURE CURING (1500C)
HIGH MOULDING PRESSURE (70 BARS)
HEIGHT UP TO 4.0 METERS

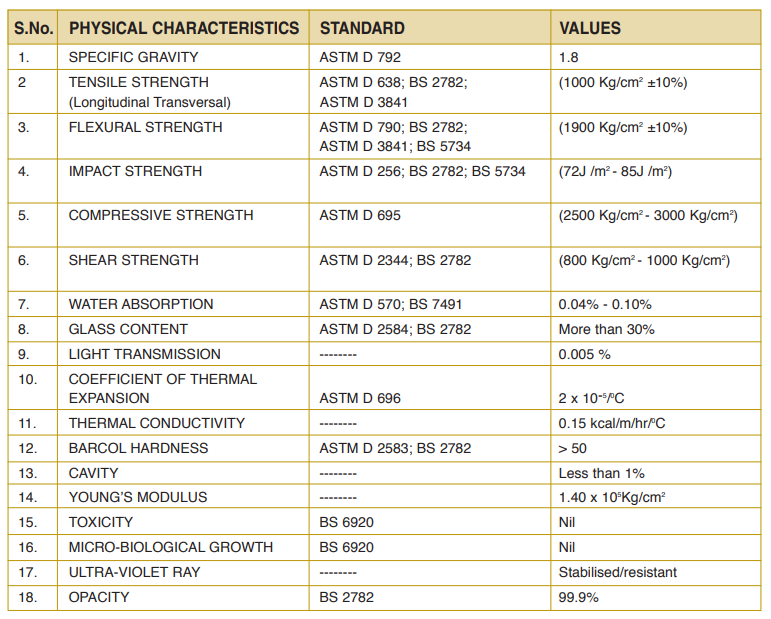

PHYSICAL CHARACTERISTICS Click to Expand

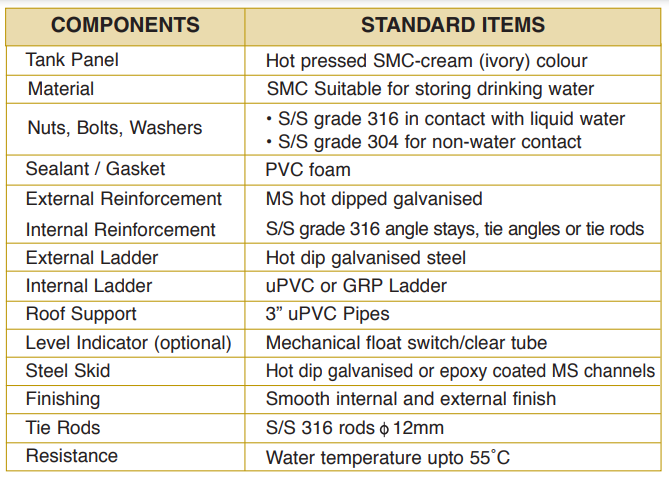

CONTENTS Click to Expand

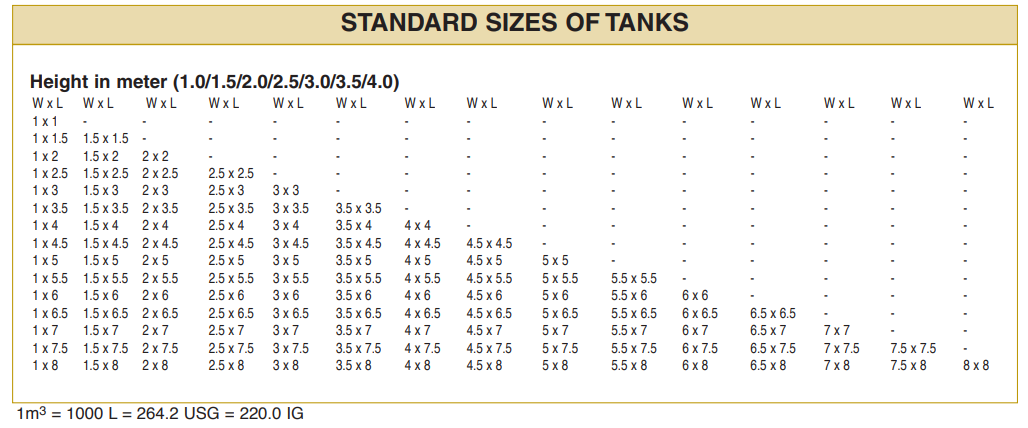

SIZES Click to Expand

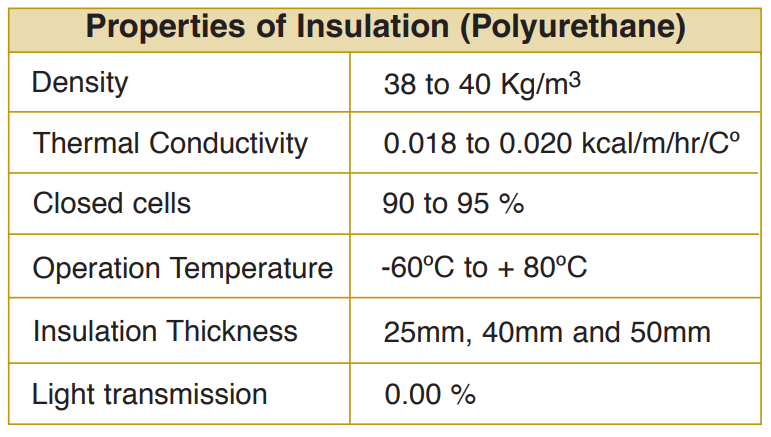

Insulation

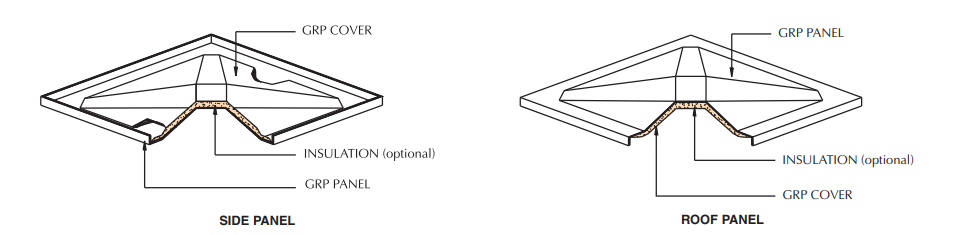

URC produces insulated panels to meet the temperature extreme of the gulf and tropical regions. Insulation thickness (as desired) is positioned in between the GRP single panel and GRP cover. These panels are used for the side and roof of the tanks. Air layer exists between the roof and the water level, which itself acts as a thermal insulation.

Installation of Tanks

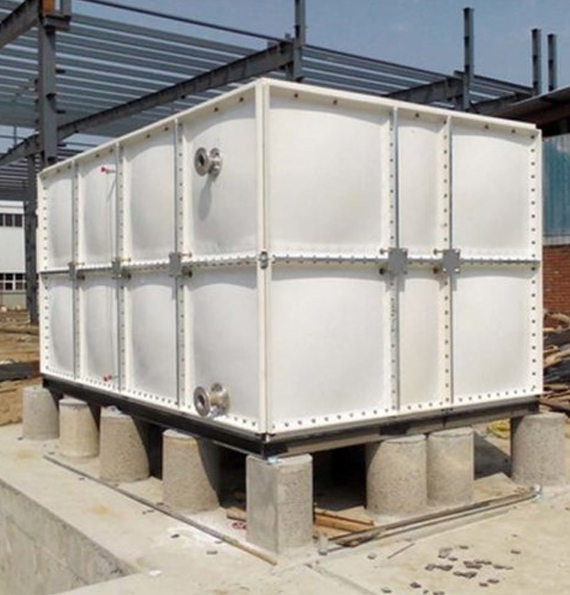

URC's panel tanks are constructed from prefabricated hot press moulded GRP panels, which are easily assembled at the job site. Standard panel sizes being 1.m x 1.5m and 0.5m x 1m. Panels are connected together by bolts. Special gaskets are used to completely seal the tank. With careful selection of suitable panels, the tank shape and size can be designed to completely match the installation at site. The installation is one of the important task of panel tank. The project is not complete unless satisfactory installation is achieved.

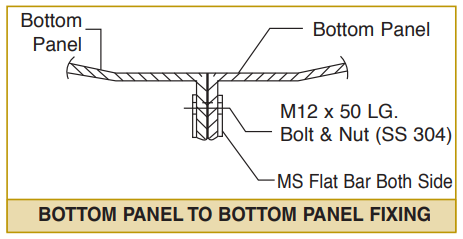

BOTTOM PANEL TO BOTTOM PANEL FIXING

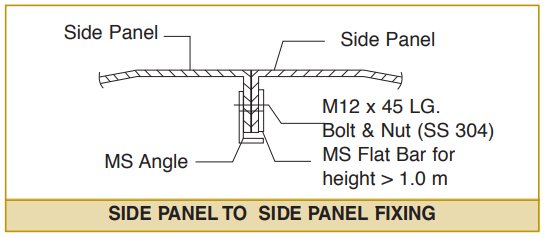

SIDE PANEL TO SIDE PANEL FIXING

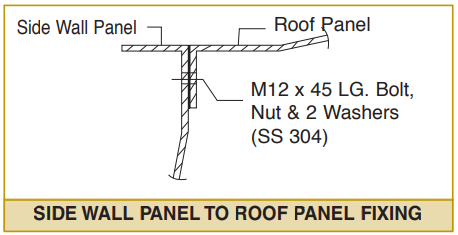

SIDE WALL PANEL TO ROOF PANEL FIXING

SIDE PANEL TO BOTTOM PANEL FIXING

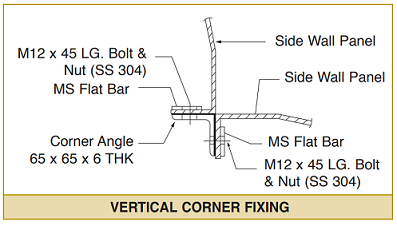

VERTICAL CORNER FIXING

ROOF PANEL TO ROOF PANEL FIXING

In-House testing facilities

In-house laboratory equipped with relevant testing facilities to deliver product as per applicable national/international/customer requirements. Well defined quality program which addresses the process controls and the inspection norms to ensure that the product meets the requirements of the customer. Periodic review of the quality systems for the need to check suitability and required modifications for improvement to enhance customer satisfaction. Committed and dedicated team to deliver products made to exacting specifications as defined by the customer.

Tensile Strength

Flexural Strength

Compressive Strength

Shear Strength

Hydrostatic Pressure Test

Barcol Hardness

Water Absorption

Glass Content Test

Thickness Test

Specific Gravity

BRACING SYSTEMS

Tanks can have either type of the following bracing systems, subject to the noted sizes restriction:

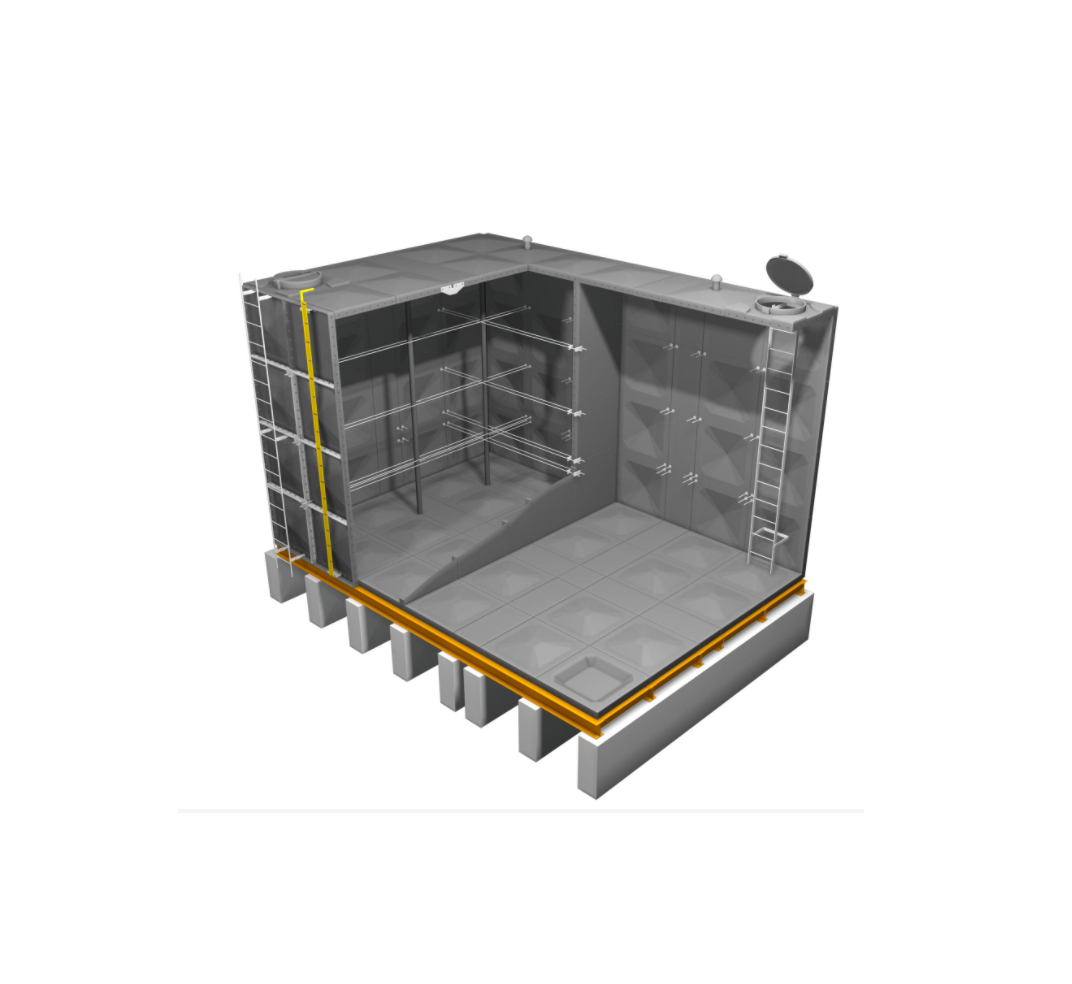

Internal Bracing

Apply only for tanks of height >1.0 m
Through 12 mm tie rods (S/S Grade 316) fortank sizes upto 5m x 5m x 3m (H)
Through angle brackets avoiding tie rods (all in S/S Grade 316)

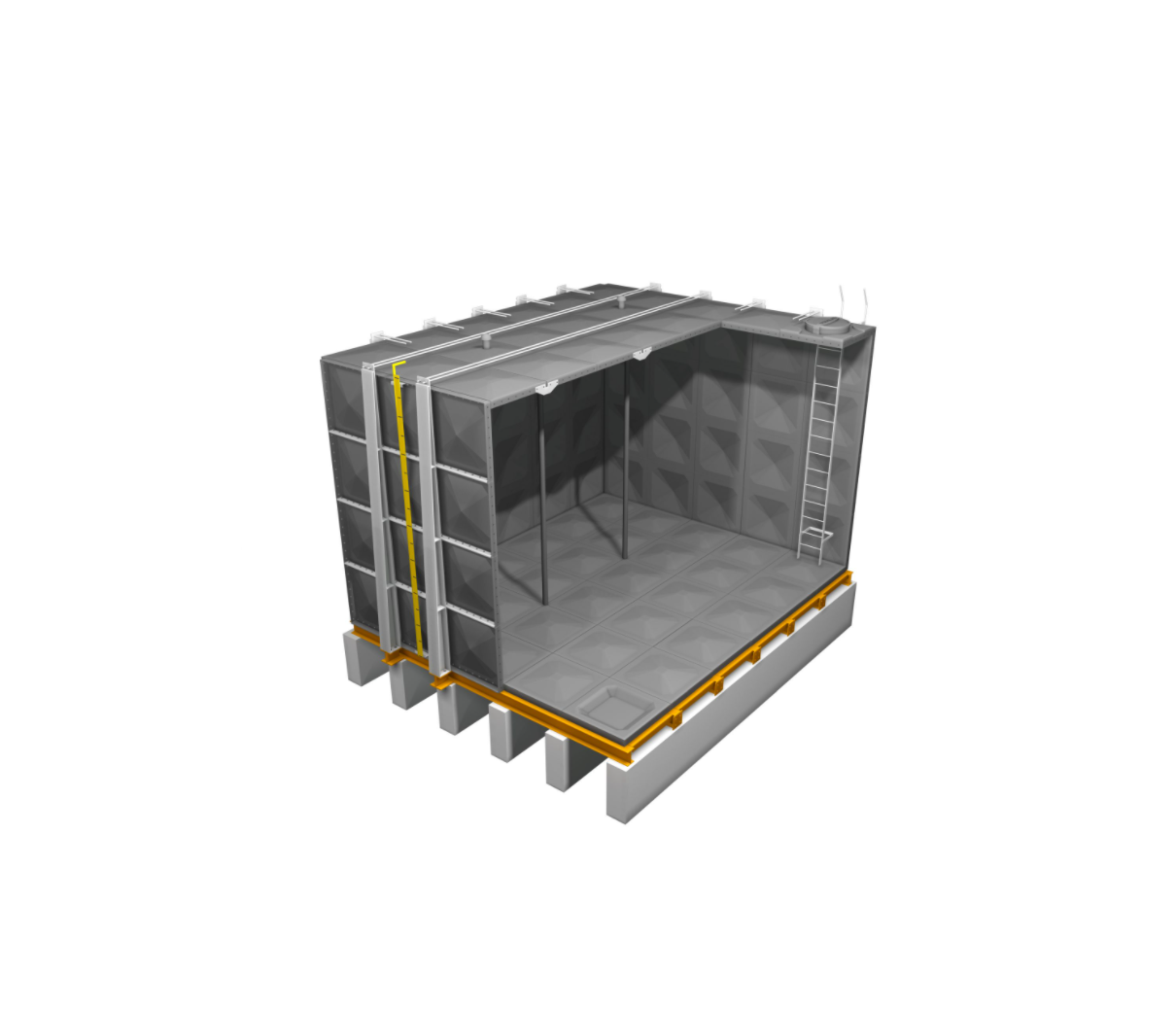

External Bracing

Apply only for tanks of height >1.0 m
Through hot dip galvanised parts support the panels from the external sides.
This system can be used for all tank sizes, especially for tank sizes greater than 6m x 6m x 3m (H).

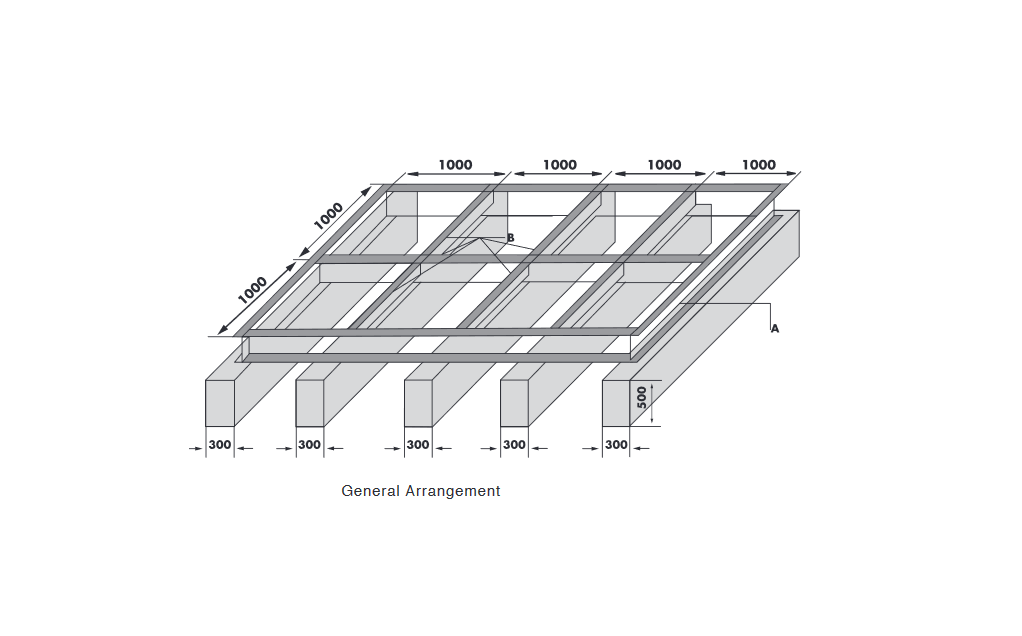

GENERAL ARRANGEMENT FOR CONCRETE BEAMS

The concrete beams should have;

Width of at least 300mm
Height of at least 500mm
Top of beams to be smooth and strictly horizontal

The following are typical arrangements of concrete beams for various tank sizes. The plinth spacings are user-friendly
